BK-M100/150 BK-M25
BK-M100/150 BK-M25
- Commodity name： BK-M100/150 BK-M25
keyword:

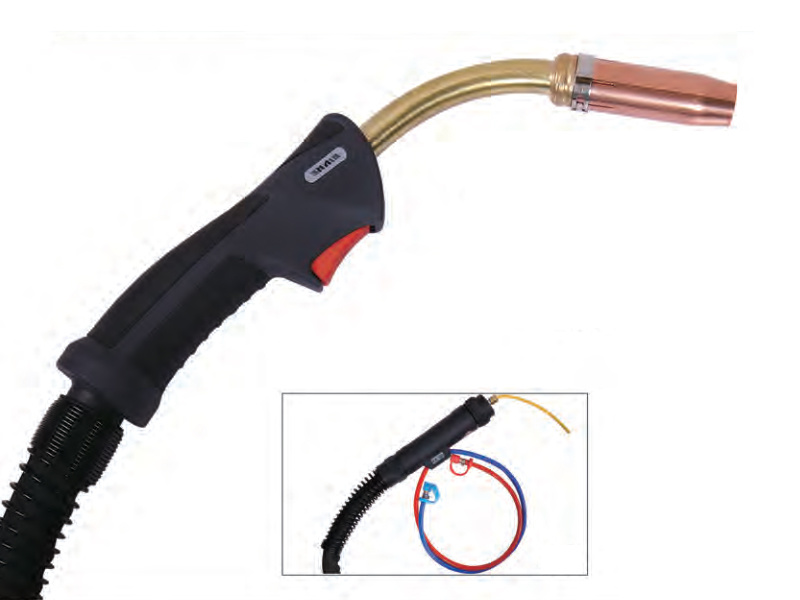

MIG Welding Torch
Product Description
Specifications (Subject to change without notice)
| Model | Stock No. | Cable Length | Rated Output | Drty Cycle | Standard Wire Size | Weight |
| M-100 | #248 282 | 1 ft ( 3m ) | 100A | 100%with CO2 gas,60% with mixed gas | 030-.035 in(0.8-0.9mm) | 3. 2 1lb (1.5 kg) |
| M-150 | #249 039 | 10 ft(3m) | 150A | 030-.035 in(0.8-0.9mm) | 4.4 1lb (2.0 kg) | |
| #249 040 | 12 ft(3.7m) | 4.7 lb (2.1 Kg) | ||||
| #249 041 | 15 ft ( 4.6m ) | 6.0 lb (2.7 kg) | ||||
| M-25 | #169 594 | 10 ft (3m) | 250A | 030-.035 in(0.8-0.9mm) | 5.4 lb (2.5 kg) | |
| #169 596 | 12 ft ( 3.7m ) | 6.0 lb (2.7 kg) | ||||
| #169 598 | 15 ft (4.6m ) | 030-.035 in(0.8-0.9mm) | 72 lb (3.3 kg) | |||
| #169 599 | 030-.035 in(0.8-0.9mm) | |||||
| M-25M | #169 601 | 15 ft ( 4.6m ) | 250A | 030-.035 in(0.8-0.9mm) | 7.5 lb (3.4 kg) |
| Contact Tips | M-100/150 | M-25 |
| .023/.025 in(0.6mm) | #087 299 | #087 299 |
| .030 in(o.8mm) | #000 067 | #000 067 |
| .030 in(0.8mm)tapered | #176 797 | |
| .035 in(0.9mm) | #000 068 | #000 068 |
| .035 in(0.9mm)tapered | #176 793 | |
| .035 in(0.9mmjheavy-duty | #187 117 | |
| .045 in(1.2mm) | #000 069 | #000 069 |
| .045 in{1.2mm）tapered | #176 794 | |
| .045 in(1.2mm)heavy-duty | #187 118 | |
| 3/64 in(1.2mm)aluminum wire | #172 034 | |
| .052 in(1.3mm) | #044 392 | |
| 1/6 in(1.6mm) | ||
| 5/64 in(2.0mm) |
Contact Tips and Nozzle Adapters
| Contact lipnozzle adapter | #169 716 | |
| Conlact tip adapter | #169 728 | |
| Nozzle adapter | #169 729 |
| Nozzles | M-100/150 | M-25 |
| 1/2 in(13mm）onifice flush tip (standard on -100/150) | #169 715 | |
| 1/2 in(13mm）onifice flush tip (standard on -M-25） | #200 258 | |
| 1/2 in(13mm）onifice 1/8 in (3.2mm)recassed tip | #169 724 | |
| 5/8in(16mm）onifice flush tip(siandard on M-40） | #169 726 | |
| 5/8 in(16mm）onifice 1/8 in (3.2mm)recassed tip | #169 725 | |
| 5/8 in(16mm）onifice 1/8 in (3.2mm)stickout tip | #169 727 | |
| Spot flat | #176 238 | |
| Spot inside commer | #176 240 | |
| Spot outside commer | #176 242 | |
| 3/8 in (9.5mm) onifice tapered | #176 243 | |
| 11/32 in (8.7mm)onifice tapered | #178 386 | |
| Gasless nozzle | #213 078 |
